Line Stopping

Line stop is a method that temporarily stops the pipe flow in a section of the pipe so as to allow for alteration and addition works to be
carried out at the downstream of the pipeline; without stopping or purging the system.

Line Stopping service is used for:
(a) Isolating a section of operational pipeline foralteration works
(b) Preparing the pipeline for bypass operation
(i.e. divert the pipe flow via a bypass pipeline while performing pipe maintenance or alteration.)

OUR CAPABILITIES

We are capable of providing hot tapping service for, tapping of various pipe material including carbon,
galvanished and stainless steel, ductile and cast iron and metal pipe with concrete lining.

  • Pipeline up to 48" (1200mm) diameter
  • Operating pressure up to 2,000 psig
  • Operating temperature up to 300°C
  • Various pipe including oil, gas, water, steam or wastewater.

OUR ADVANTAGES

We provide linestopping service with the following advantages :

  • One-Stop Service - Hot Tap accessories & service, insulation & piping works
  • Convenient - No need for massive draining of fluid
  • Hassle Free - Installation of valves, pressure & vacuum gauge, thermowell
  • Reliable - Many years of hot tapping &linestop/by-pass experience

LINESTOP PROCESS

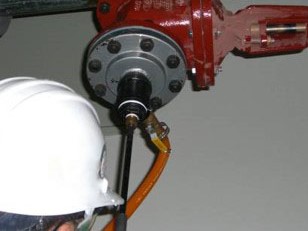

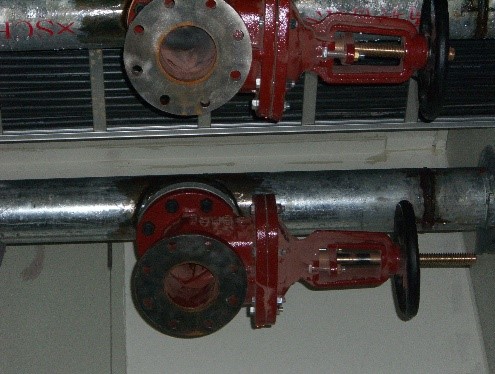

  1. Hot tap machine is inserted into the split tee hot tap fitting to remove a portion of the pipe.
    Only one unit of hot tap is required for single line stop operation. For double line stop, two such hot taps will be performed.

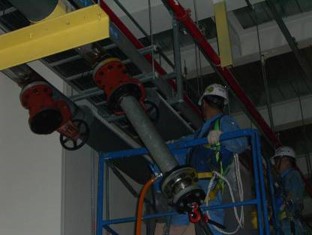

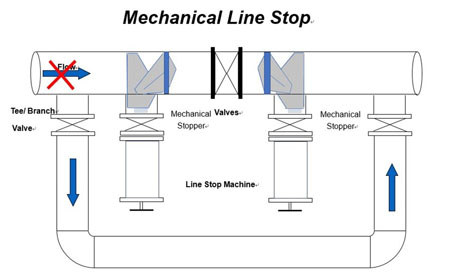

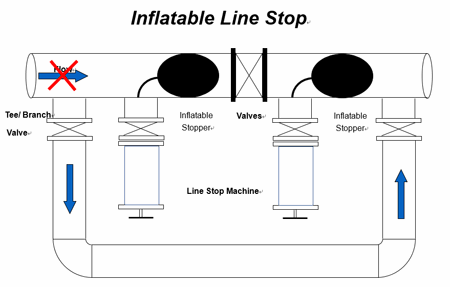

  2. After the hot tap operation is completed, a single or double line stop machine (mechanical or inflated)
    is fitted into the pipeline to temporarily stop the flow into the isolated area.

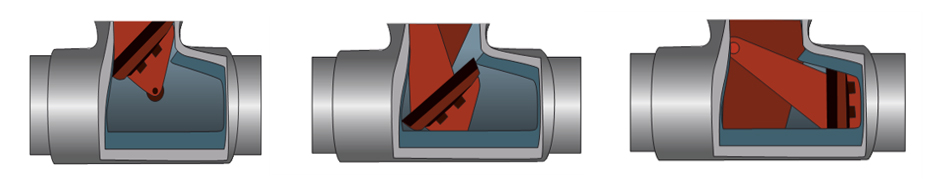

Line Stopping Process

By-Pass Process

Pipeline bypass is a procedure that uses two or more line stop machine to temporarily stop the flow in one section of an operating pipeline,
while diverting the pipe flow through a temporary bypass, so that the affected section of pipeline can be repaired, replaced or altered
without shutting down the system.

By-Pass service is used for isolating a section of operational pipeline while maintaining pipe flow through the entire pipe system.

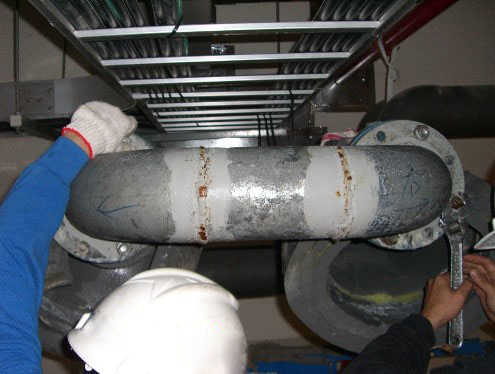

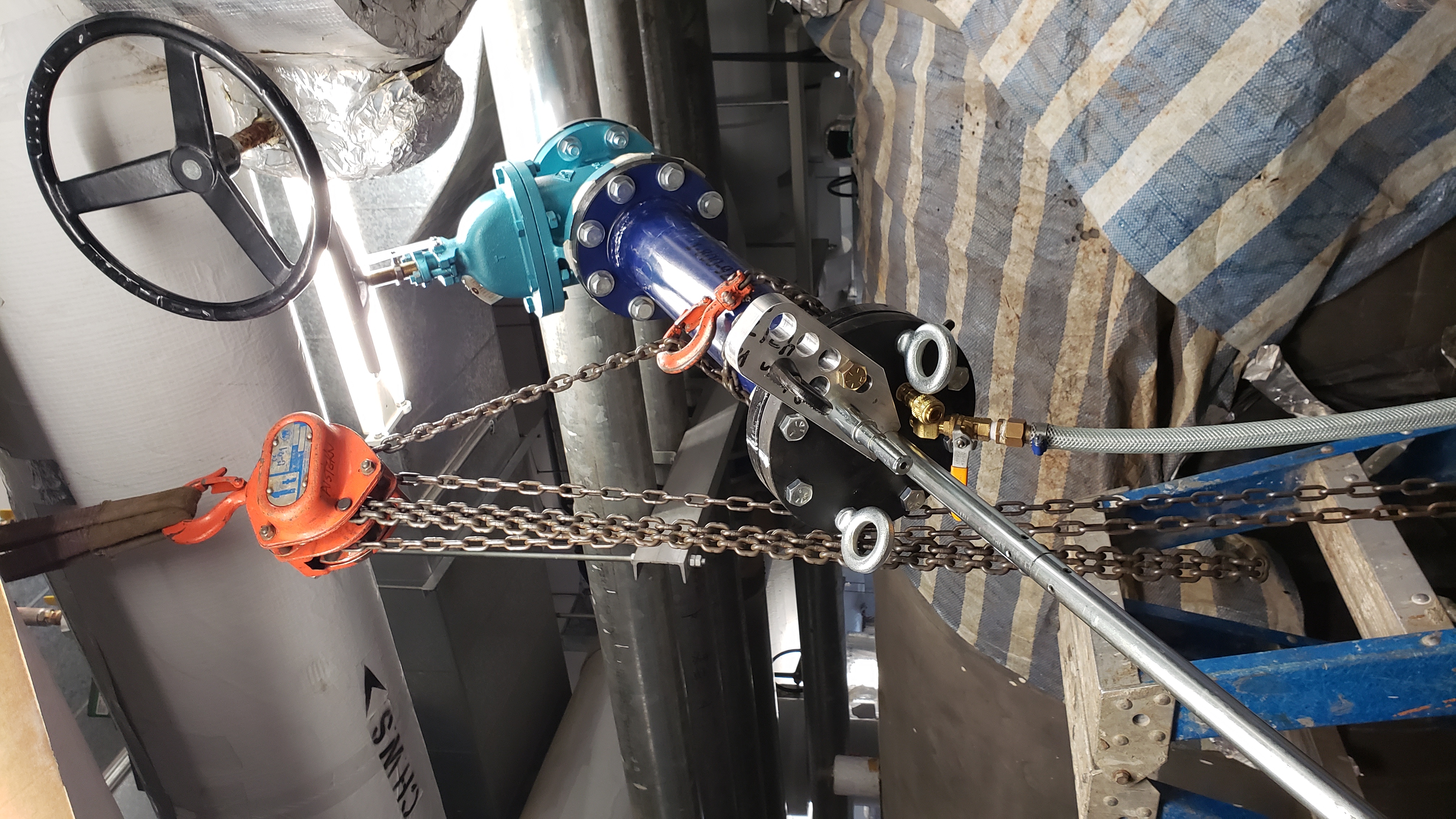

Recent Photo Reference
